NK-23 series
- Table size 1000×1000 ,1500 ,2000
- Table elevation equipped
- Aluminum compatible models available AL5052(2.0mmx2.0mm)
Ease of use

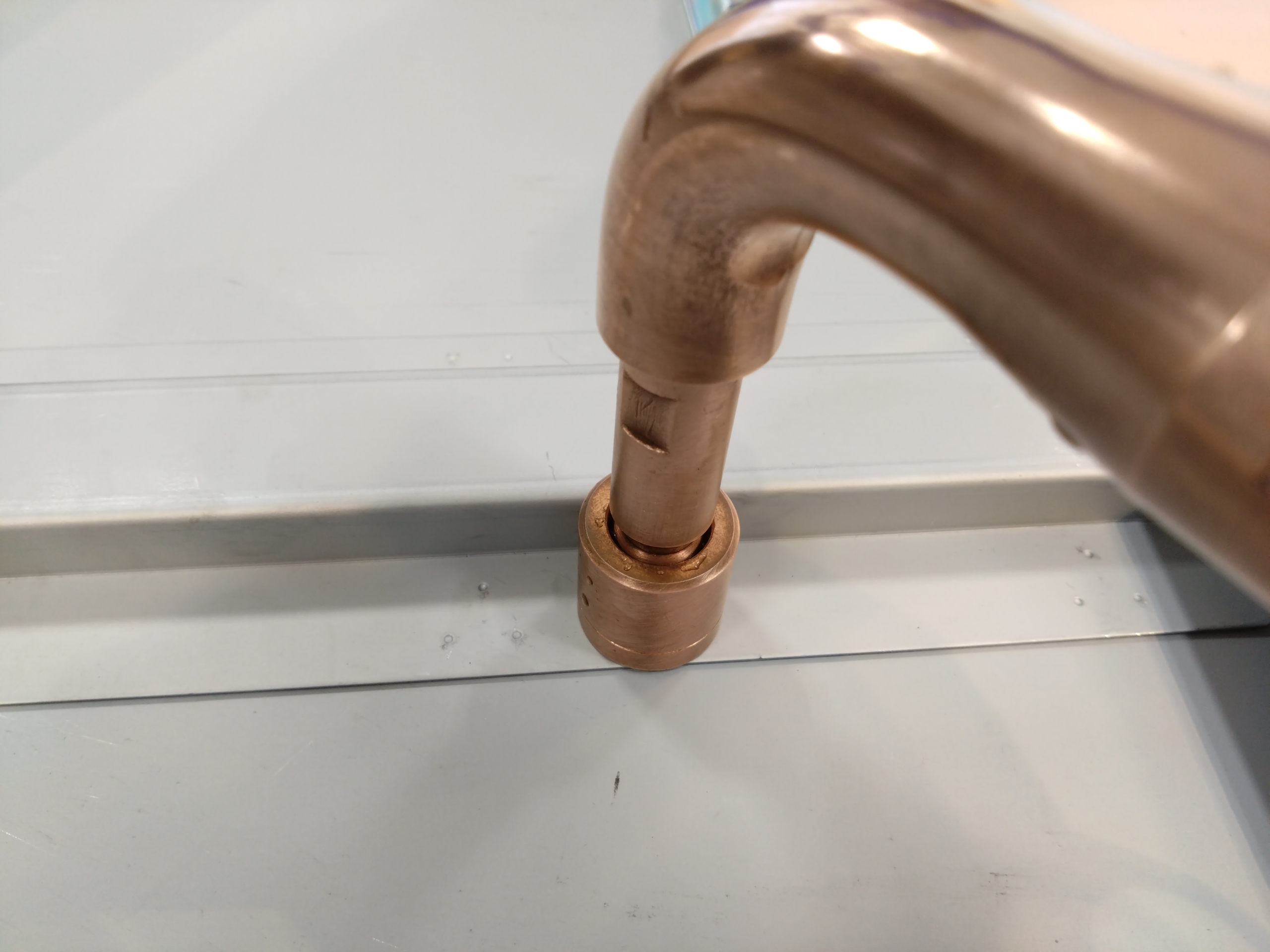

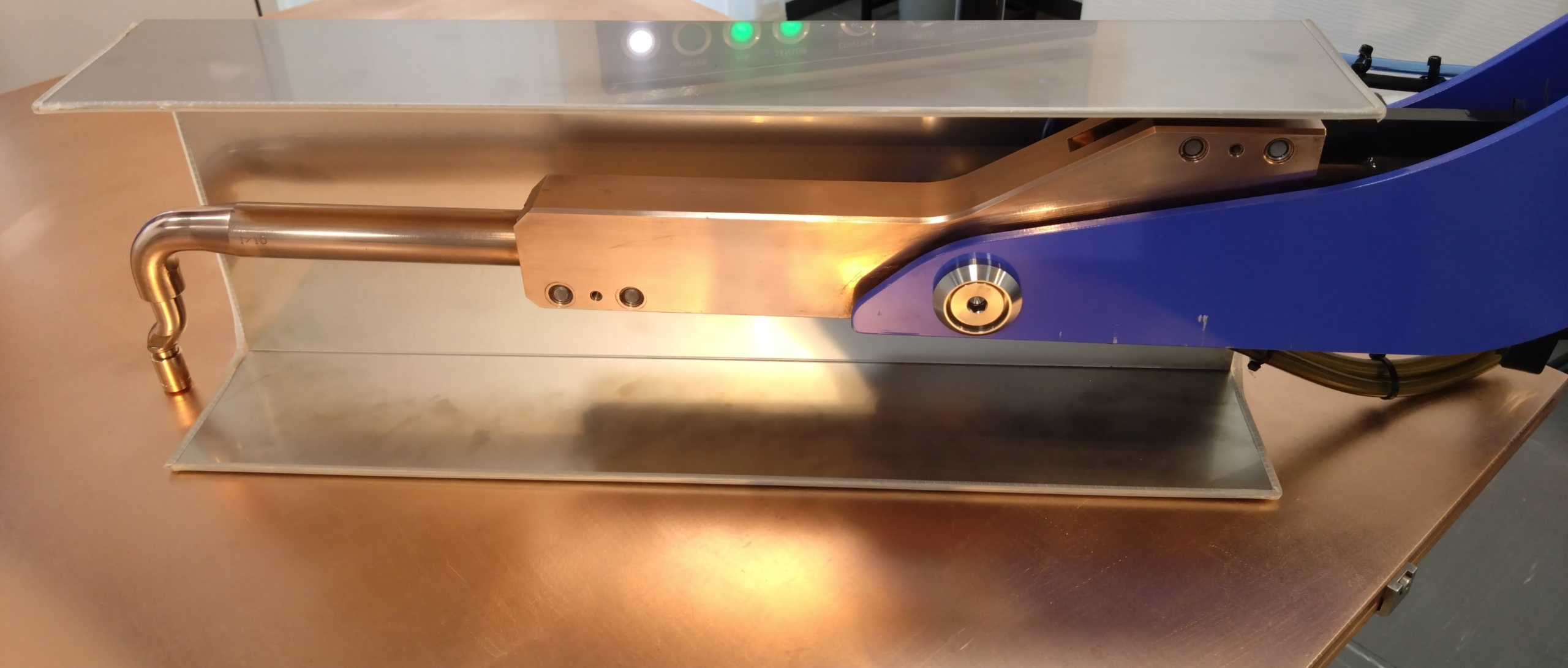

◯For deep and narrow workpieces
The shape of the H-gun has been redesigned to make it easier to use. Now you can spot deep areas and narrow spaces that were previously impossible to reach.
◯Adjustable Table Height
All sizes of table electrodes are now equipped with a lifting function as standard. This allows you to easily use jig electrodes tailored to the workpiece shape, expanding the range of workability.
◯Easy to handle
The load when moving the arm has been reduced by up to 53% compared to previous models. Similarly, the load when inserting the H-gun has been reduced by up to 91%, This reduces the burden on the operator and increases productivity.
High-Quality Finish
◯Clean and Strong
Our proprietary “high-speed welding technology” delivers and controls high current in 0.001-second increments, resulting in high-quality spot welding.
◯Projection welding
Projection welding is a perfect match for “high-speed welding.” It can be used for multiple simultaneous projections and welding difficult-to-weld plated materials.
◯High pressure
High pressure is standard equipment, allowing for use with thin plates to 3.2mm thick plates (Mild steel). This expands the scope of your work, from thin to thick plates.
Welding condition management / Production management
◯Easy setup , Easy management
Welding conditions are easily set by material, plate thickness, and electrode. The project function makes production management a breeze.

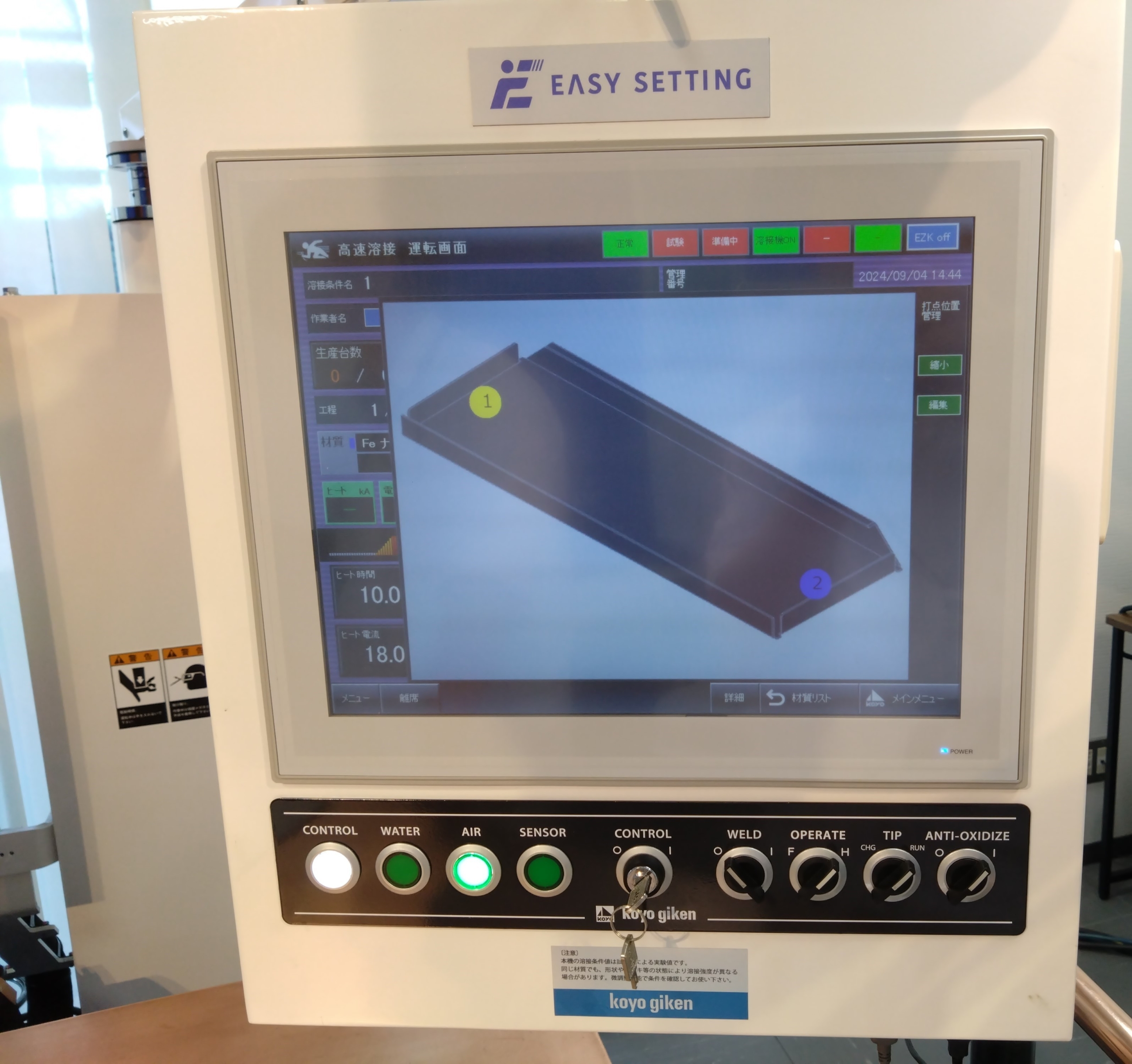

◯Spot Weld Navigation
Instructions such as workpiece shape, welding locations, and sequence are displayed on the screen. Operators can work while looking at the images, reducing errors.
◯Welding history / Inspection
In addition to check items that ensure thorough inspection practices, various report output allows for smooth response to defects.
Specifications by power supply
| KG | WKG
Aluminum+2 | |
|---|---|---|
| KG | WKG
Aluminum+2 | |
| Maximum short-circuit current | 12000A | 24000A |
| Maximum welding pressure | 3.8kN | 3.8 kN |
| Capacity rating | 3 phase 200/400V 40kVA |
3phase 200/400V 80kVA |
| Less finishing work | 〇 | 〇 |
| Energy-Saving | 〇 | 〇 |
| Aluminum welding | 〇 | |
